Node.js Todo App - Docker + GHCR

This project is a simple but production‑minded Todo application that demonstrates how I containerize a full‑stack app and publish images to GitHub Container Registry (GHCR) with automated CI/CD. The goal is to practice containerization, release flow, and day‑2 operations on a compact, approachable codebase.

• Backend API: Node.js (Express 5), better-sqlite3, helmet, cors, pino
• Data: SQLite file DB (WAL), persisted to a volume
• Frontend: Next.js (App Router), Tailwind + shadcn/ui
• Containers: Separate Dockerfiles for API and Web (standalone Next.js)
• CI/CD: GitHub Actions → build and push images to GHCR with multiple tags

Live demo

_{Backend and Web in separate images; DB file persisted via volume.}

Project goals

• Fast local development with deterministic environments.
• Small, minimal container images, non‑root user, health checks.
• Automated build and publish to GHCR with reliable tagging.
• Clear, minimal code where DevOps patterns are easy to see.

Architecture overview

• Backend API (Express)

  • CRUD on the todos resource
  • helmet + cors + JSON body parsing
  • pino and pino-http for structured logs
  • GET /healthz for health checks
  • SQLite via better-sqlite3 in WAL mode

• Data layer

  • SQLite file at data/todos.sqlite
  • Schema ensured at startup; createdAt/updatedAt as ISO strings
  • WAL mode for better write/reads and reliability

• Frontend (Next.js)

  • App Router, modern UI (Tailwind, shadcn/ui)
  • UI calls the API via NEXT_PUBLIC_API_URL
  • Standalone build copied into the runtime image

• Containerization

  • Separate Dockerfiles for API and Web
  • Multi‑stage with cached npm install
  • Non‑root user; HEALTHCHECK in API image
  • DB volume at /app/data

• CI/CD

  • GitHub Actions workflow builds on push and publishes to GHCR
  • Tagging: latest, sha-<SHORT_SHA>, vX.Y.Z (on release tags)

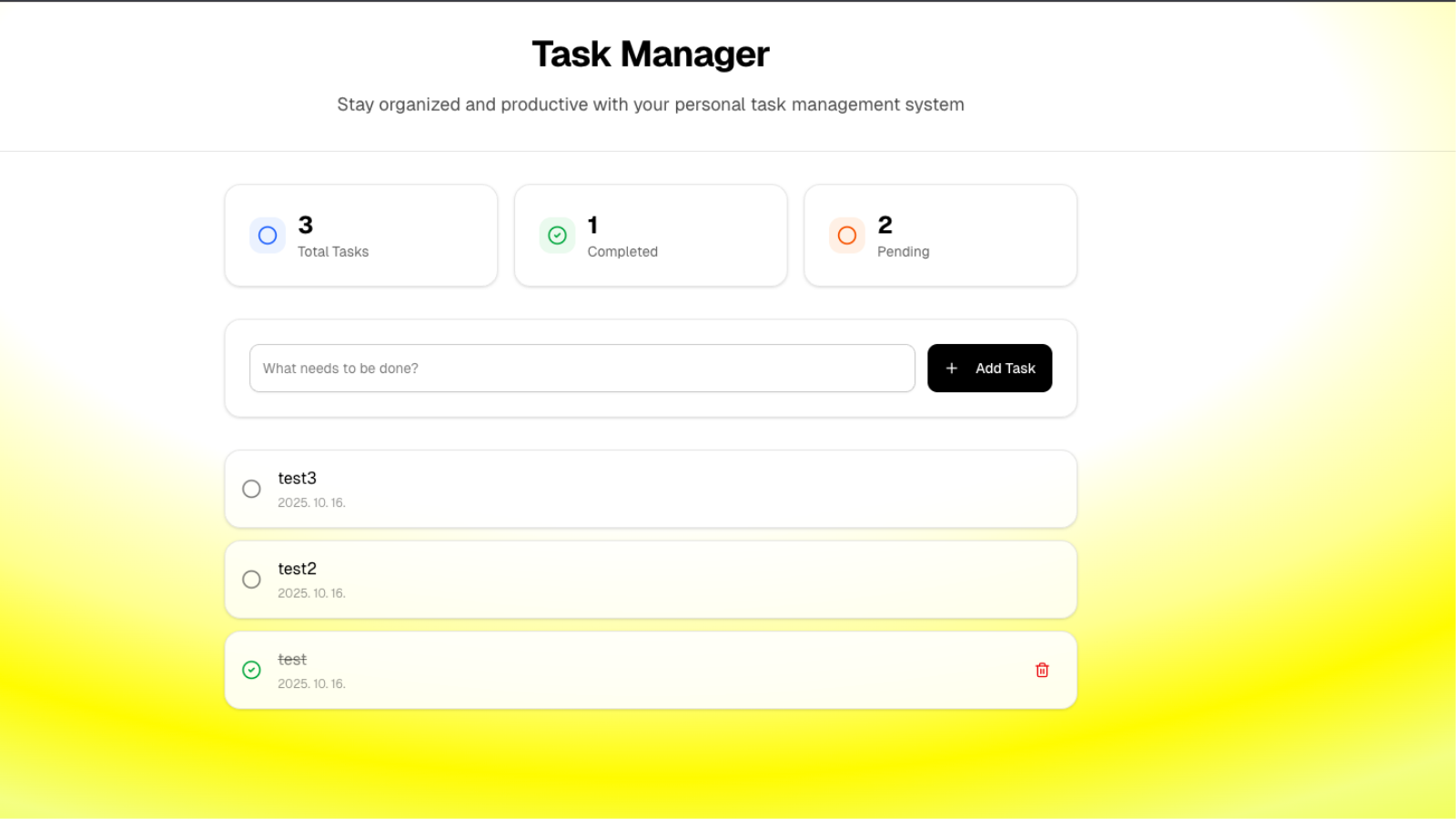

_{Minimal Task Manager UI built with Next.js.}

Data model (essentials)

• todos(id INTEGER PK AUTOINCREMENT, title TEXT, completed INTEGER, createdAt TEXT, updatedAt TEXT)

Indexes:

• Implicit PK index on id; queries use ORDER BY id DESC for recency

API surface (concise)

• GET /healthz → { status: "ok" }
• GET /todos → list
• GET /todos/:id → single item
• POST /todos → { title, completed } → 201
• PUT /todos/:id → { title?, completed? } → 200
• DELETE /todos/:id → 204

Request lifecycle

1. Frontend calls the API using NEXT_PUBLIC_API_URL (e.g., http://localhost:3000).
2. API validates and reads/writes the SQLite file via better-sqlite3.
3. API returns JSON; Frontend updates local state.

Operational concerns

• Local dev: fast startup via npm run dev for both components.
• Containers: small images, non‑root runtime, API HEALTHCHECK.
• Persistence: SQLite stored on a host volume (/app/data).
• Config: Frontend points to the API via environment variable.

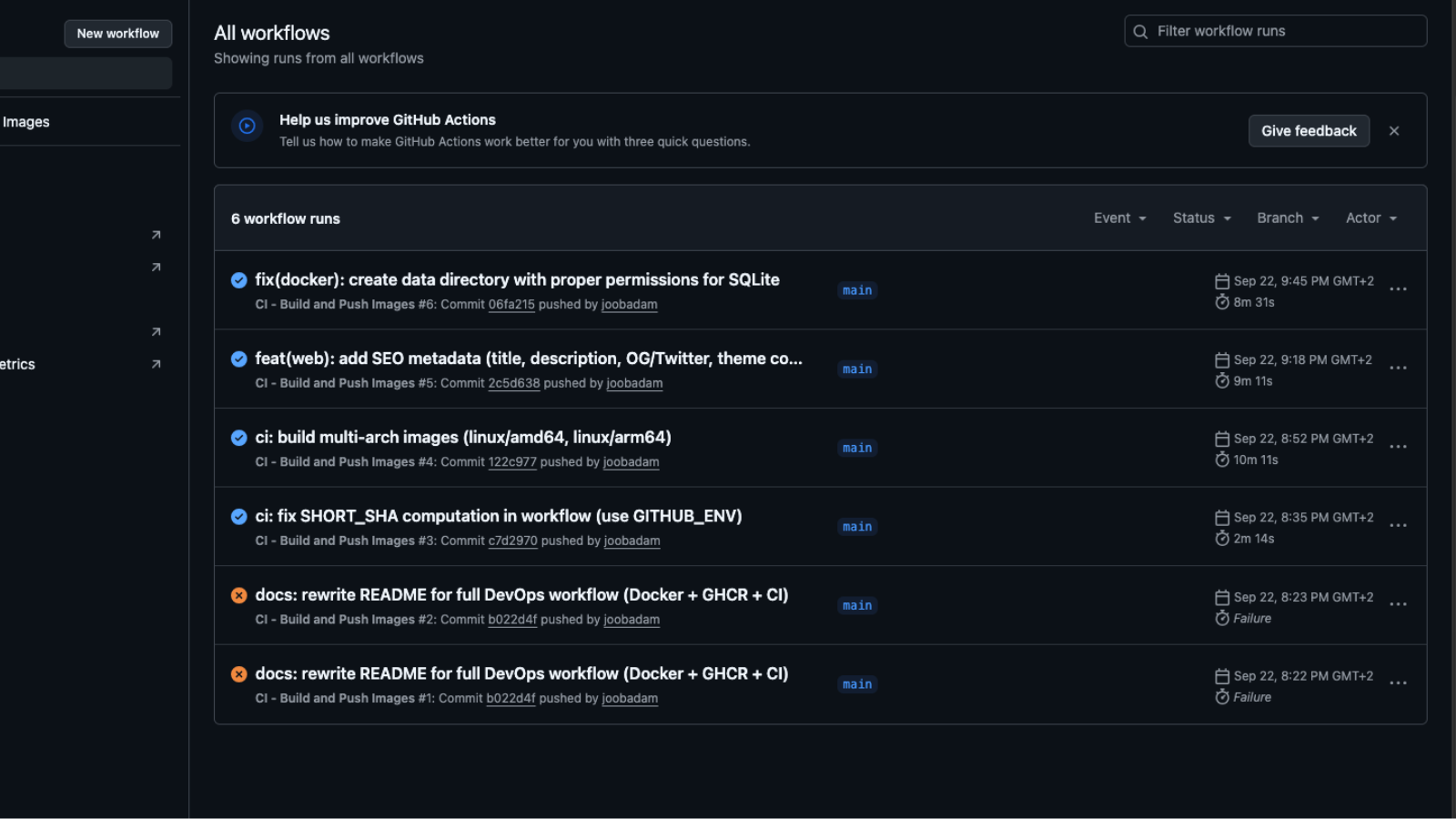

_{CI/CD builds and pushes images to GHCR.}

Observability

• Healthcheck: GET /healthz (also used by Docker HEALTHCHECK).
• Logs: JSON logs via pino, tunable with LOG_LEVEL.
• Error contract: consistent 4xx/5xx JSON responses.

Security and reliability

• helmet: baseline security headers.
• cors: explicit enablement for development.
• Non‑root: image runs as a non‑root user.
• Readiness/health: HEALTHCHECK surfaces faulty instances quickly.

Performance notes

• SQLite WAL mode for fast and safe writes.
• better-sqlite3 sync API → simple and fast on this scale.
• Simple id‑based ordering; UI computes stats locally.

Trade‑offs and decisions

• SQLite → zero infra dependency and simple setup; single‑process writes.
• Two separate images (API, Web) → clearer deploy ownership boundaries.
• Standalone Next.js runner → smaller runtime image and faster start.
• Explicit HEALTHCHECK → better operability and diagnostics.

Running the project

• Backend (local)

  npm install
  npm run dev   # or: npm start
  curl -s http://localhost:3000/healthz | jq .

• Frontend (local)

  cd web
  npm install
  PORT=3001 npm run dev
  # Open http://localhost:3001

• Docker build

  # API
  docker build -t ghcr.io/<owner>/<repo>-api:local .

  # Web
  cd web
  docker build -t ghcr.io/<owner>/<repo>-web:local .

• Docker run

  # API on 3000 (persist DB to ./data)
  docker run -d --name todo-api \
    -p 3000:3000 \
    -v "${PWD}/data":/app/data \
    ghcr.io/<owner>/<repo>-api:local

  # Web on 3001 (point UI to API)
  docker run -d --name todo-web \
    -p 3001:3001 \
    -e NEXT_PUBLIC_API_URL="http://host.docker.internal:3000" \
    ghcr.io/<owner>/<repo>-web:local

• Healthcheck

  curl -sI http://localhost:3000/healthz
  curl -sI http://localhost:3001

CI/CD and releases

• Workflow: .github/workflows/ci.yml
• Triggers:
  • push to main → build + push GHCR
  • tags v* → version tags (e.g., v1.2.3)
  • pull_request → build only
• Published images:
  • ghcr.io/<owner>/<repo>-api:{latest,sha-<SHORT_SHA>,vX.Y.Z}
  • ghcr.io/<owner>/<repo>-web:{latest,sha-<SHORT_SHA>,vX.Y.Z}
• Auth: uses GitHub‑provided GITHUB_TOKEN

Edge cases

• Port conflicts (3000/3001) → free the ports:

  lsof -ti:3000,3001 | xargs -r kill -9

• Next dev port → PORT=3001 is required for Web dev.
• Docker daemon unavailable → start Docker Desktop.

Future work

• E2E tests in CI (e.g., Playwright for UI + Supertest for API)
• Docker Compose for joint dev startup
• Production log forwarding (e.g., Loki/ELK)
• Simple rate‑limiting and request id tracing in pino

Notes

The repository is intentionally small, but the patterns (containerization, health checks, logging, CI/CD, env configuration) mirror how I approach larger systems. If you want, I can extend this page with screenshots, a live demo link, or deeper cost/perf details.
